Basit dallı kiriş darbe test makinesi
Yedek Parça
Tezgah makineleri

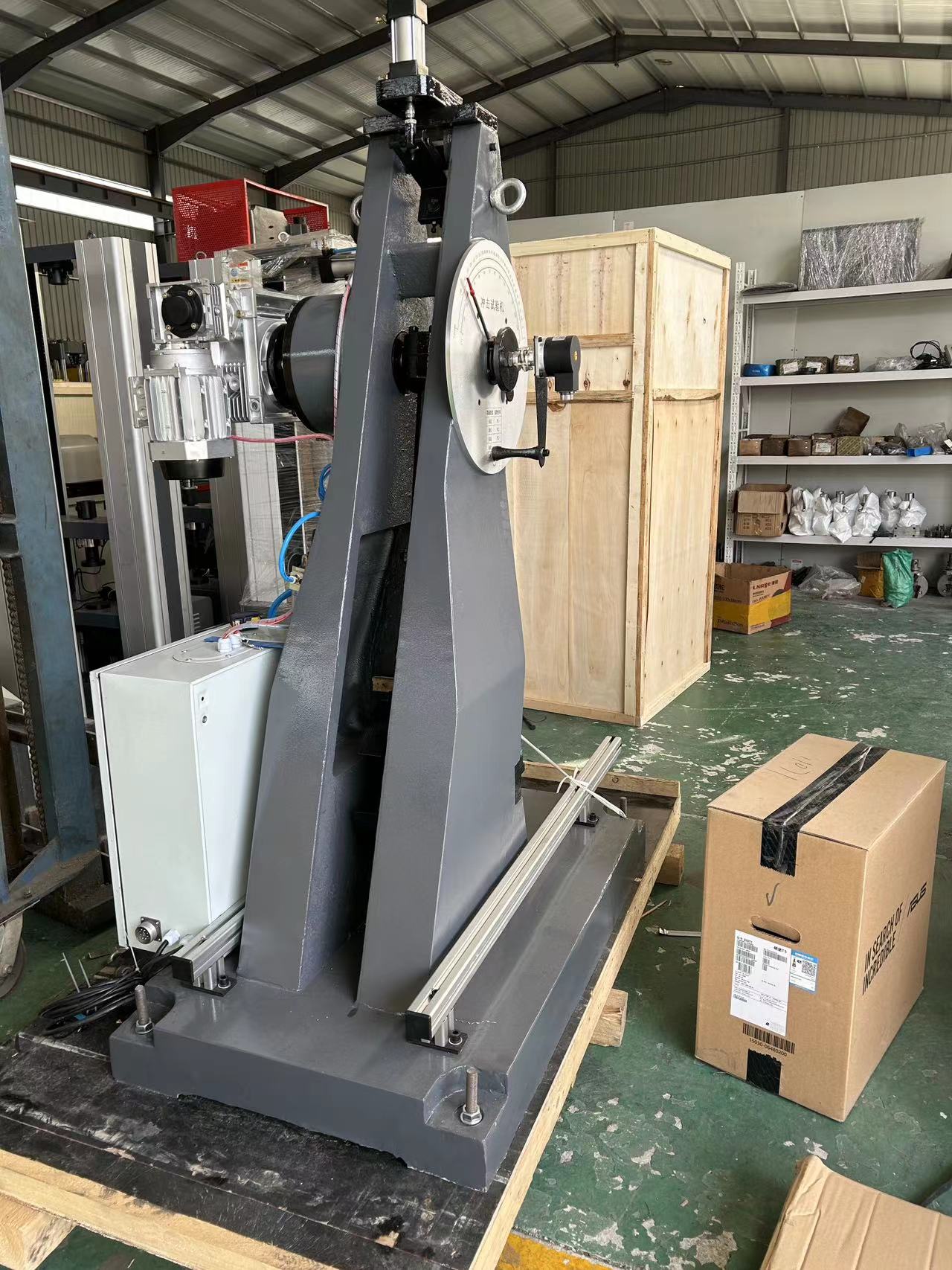

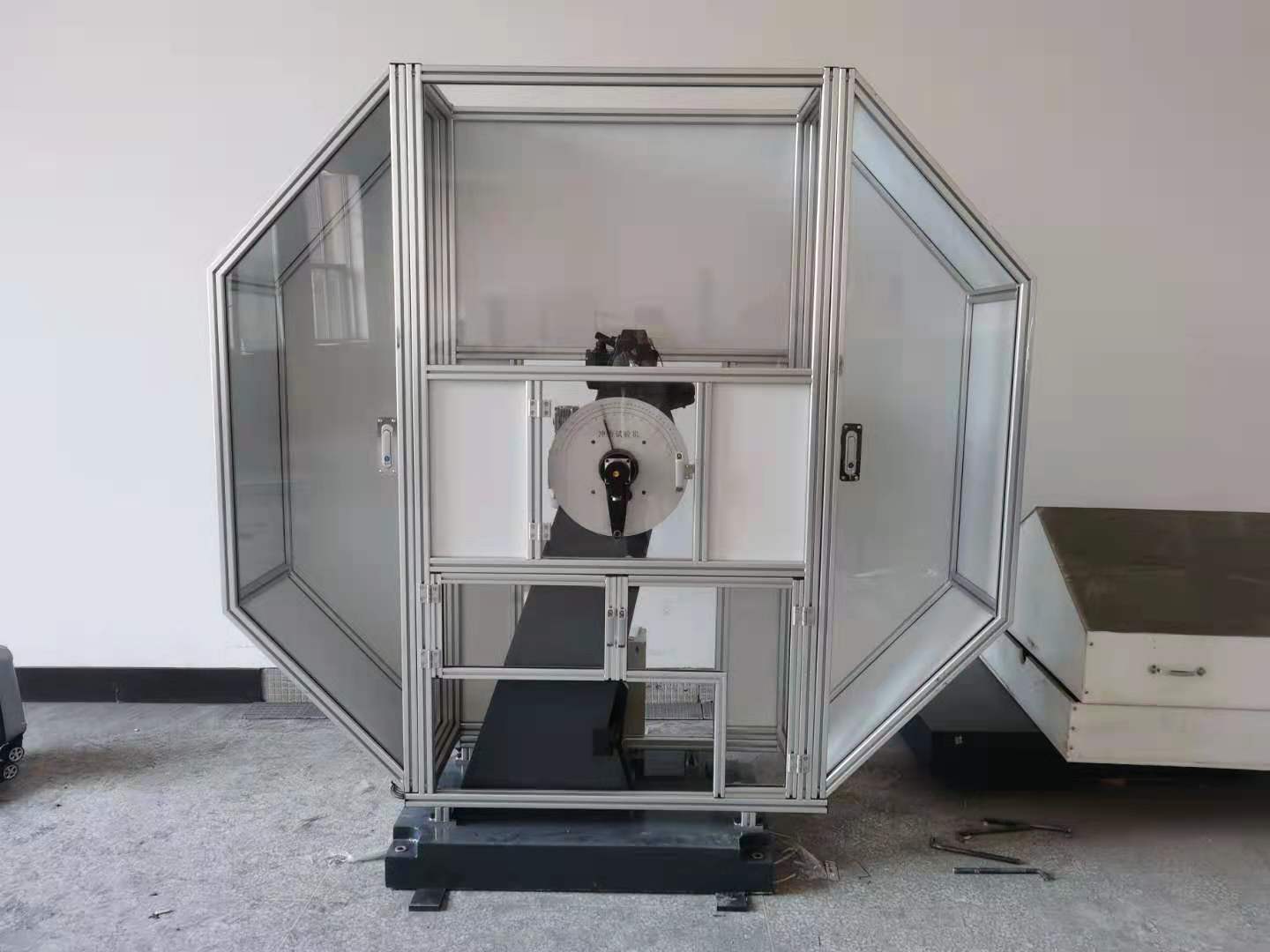

Machine Charpy 1.Machine capacity for charpy tests: The hammer can achieve a maximum energy of 450 joules. 2. Motor - 220V 3phase 50/60 Hz 3. Power supply 220V 1phase 50/60 Hz 15A 4. Motorised raisin
Ürün Özellikleri
Machine Charpy 1.Machine capacity for charpy tests: The hammer can achieve a maximum energy of 450 joules. 2. Motor - 220V 3phase 50/60 Hz 3. Power supply 220V 1phase 50/60 Hz 15A 4. Motorised raising of the hammer after testing 5. Electromagnetic brake to stop the hammer. 6. complies with ASTM E23, ASTM A370, ISO 148-1 and ISO 148-2 standards 7. products to be analysed: low-alloy and alloy steel 8. charpy specimen with ( V ) notch . 9. test piece dimensions 10x10x55 mm / 10x7.5x10mm/10x5x10mm 10. complete protective enclosure the hammer cannot be released when the access door is open
